Product Description:

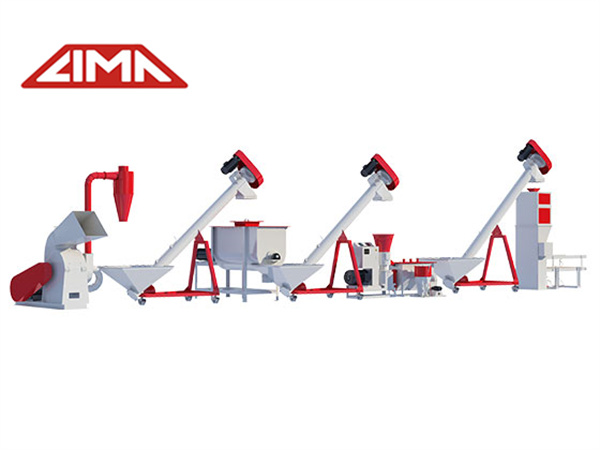

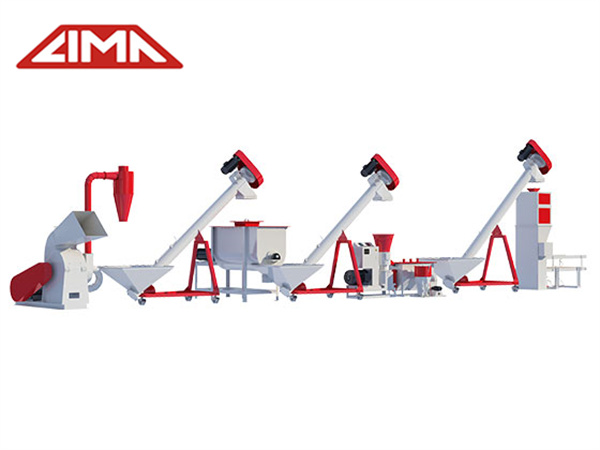

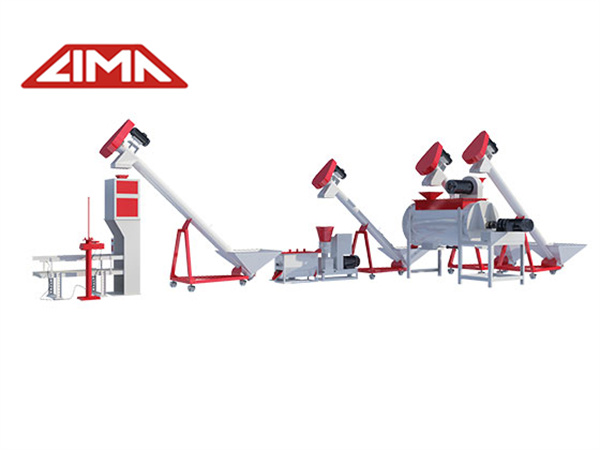

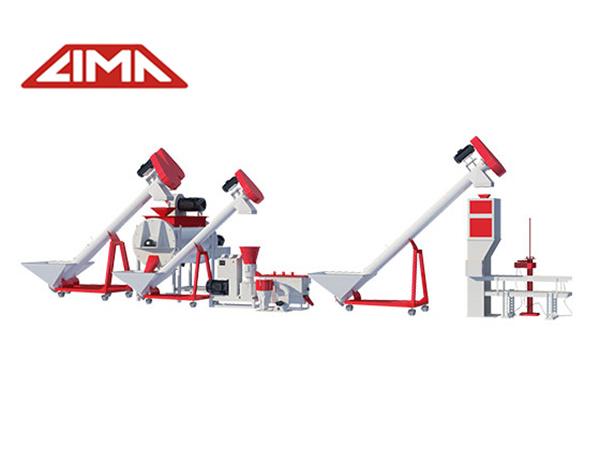

Chicken feed pellet production line is also used to make animal feed pellets,like chicken feed,pig feed,cattle feed. The solution of poultry feed plant has 100~1000kg/h, 1t/h, 2t/h, 3t/h and 5t/h. LIMA also provides the other feed machine line solutions capacity in according with client’s requirement.
| 1-2ton/h chicken feed pellet line | ||||
| Item | Name | Model | Motor（kw） | Machine Picture |

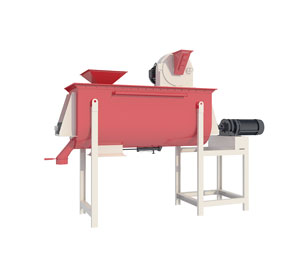

| 1 | Crusher and Mixer machine(U-shape） | SFL20 | 18.5 |  |
| SHW1.0 | 7.5 | |||
| Pellet Processing | ||||

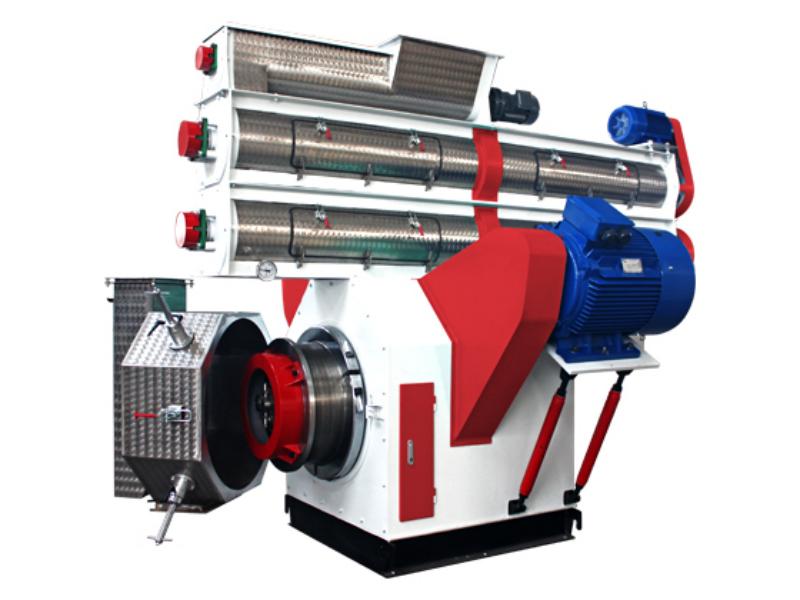

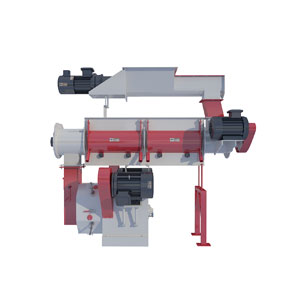

| 2 | SZLH250 Ring Die Pellet Machine | Poultry feed pellet machine | 22 |  |
| Conditioner(stainless | 2.2 | |||
| Feeder（stainless | 0.75 | |||
| 3 | Counter flow cooler machine | SKLN11×1 | 0.75 |  |

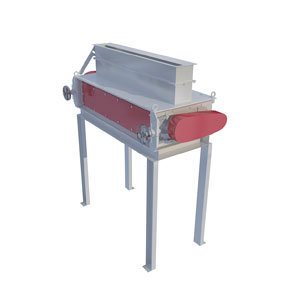

| 4 | Roller Crusher | SSLG15*80 | 5.5 |  |

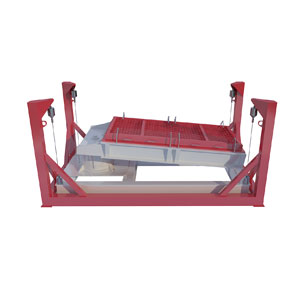

| 5 | Screener | ZDS60*2d | 1.5 |  |
| Other Accessories | ||||

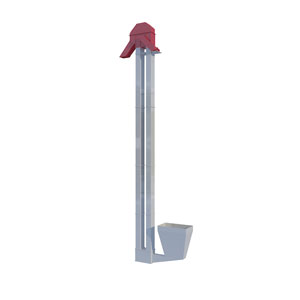

| 6 | Bucket elevator | TDTG26/18*3pcs | 2.2*3 |  |

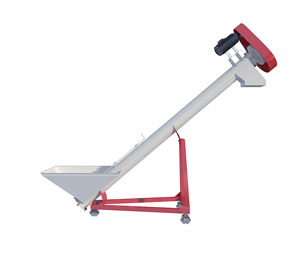

| 7 | Screw conveyor | Feeding hopper | 4.4 | |
| TLSS16 Conveyor |  |
|||
| 8 | Buffer bin | 1.0m³ *2 |  |
|
| 2m³ *1 (Silo for pellets) |  |
|||

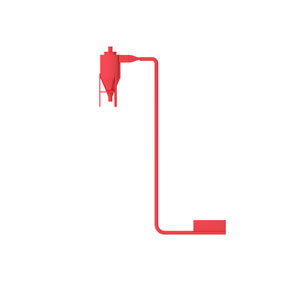

| 9 | Air blower with pipe | 4-72No4A | 5.5 | |
| 10 | Control cabinet | |||
| 11 | Air lock | GFY250 | 0.75 | |
| 12 | Pneumatic gate valve | |||
