1-18t/h Ring Die Poultry Feed Machine by Electric

Model: LM250, LM320, LM350, LM400, LM420, LM508
Capacity(t/h):1-18
Conditioner Power(kw):1.1-5.5
Main Motor Power(kw):22-132
Feeder Power(kw):0.75-1.5
Size of Finished Pellets(mm):1.5-12

lima37@limamachinery.com
Inquire Now
Product Description:

Machine Functions

1. Feed pellets can raise rabbits, chickens, ducks, geese, fish, pigs, cattle, sheep, and aquatic products.
2. Feed Pellet Mill with Ring Die is a good choice for Animal Feed Pelletizing.
3. The size of the pellets can be changed by changing the mold.
4. The raw material enters the steel mold. The rotating roller is pressed into the working chamber, embedded in the die hole, extruded from the outer wall of the steel mold, and cut into cylindrical particles by a cutter.

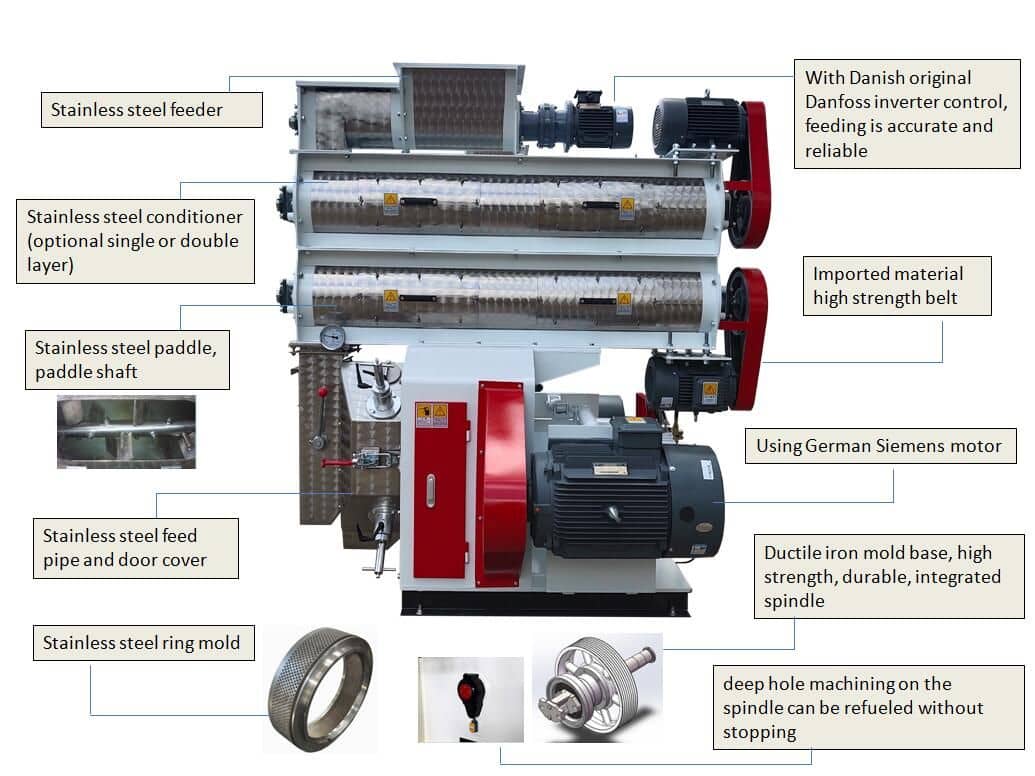

Product Features

1. The machine has a long service life because of made of wear-resistant material
2. Adjustable compression rate, the pellet mill can meet different pelletizing requirements and is available to press coarse materials.
3. The pelletizing process is visible, so it is convenient to solve problems in time.
4. Simple structure, low consumption, small area coverage, easy operation, and maintenance.
5. poultry Feed size can be adjusted according to grinding tool size

Product Parameter

Model Main power(kw) Capacity Feeder Power(kw) Conditioner power(kw) Dimension(mm) Weight(kg)
LM250 22 1-2 T/H 0.75 1.1 1700*650*1750 715
LM320 37 2-4 T/H 0.75 2.2 1800*1550*1650 1400
LM350 55 2-6 T/H 0.75 2.2 2150*1950*1900 2000
LM400 90 3-8 T/H 1.5 4 2300*2000*2020 2500
LM420 110 4-12 T/H 1.5 4 2300*2330*2090 3200
LM508 132 4-18 T/H 1.5 5.5 3350*2350*2200 4300
